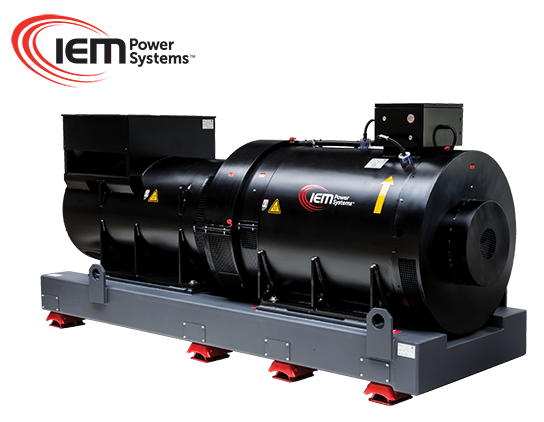

Rotabloc Rotary UPS

Rotabloc is an Electrically Coupled Rotary UPS System made in the U.S. and Europe

Designed to Protect Against Electrical Disturbances in the Event of Power Failures as well as Applications in Need of Improved Power Quality

IEM Power Systems has developed the complete UPS system to protect Critical / ‘No-Break Loads’ against electrical disturbances in the event of power failures, voltage transients, or slow voltage fluctuations.

Our simple, robust design allows for low maintenance while guarantees maximum reliability.

Rotabloc is electrically connected to the back-up generator, providing advantages including:

  • Locating the engine genset remotely – saving valuable internal space
  • No mechanical wear when the generator is engaged – increasing reliability and reducing maintenance
  • Safely test or maintain the energy storage unit and the engine generator separately
  • Ability to utilize a site’s existing engine generator assets

Rotabloc UPS also employs an electro-magnetic coupling to harvest the stored energy without friction or wear during sustained Utility failures. This patented energy transfer system reduces maintenance and further increases reliability.

No other UPS provides the same simplicity, reliability and efficiency delivered by the Rotabloc system.

The result is a RUPS with the most favorable TCO for your project.

IEM Power Systems is the only UPS manufacturer that will build, integrate and test your system in the factory as standard.

 50 HzkVAkW
RBT-40050400320
RBT-50050500400
RBT-500HP50500500
RBT-63050630504
RBT-80050800640
RBT-1000501000800
RBT-1100501100880
RBT-1250D5012501000
RBT-1600D5016001280
RBT-1750D5017501400
RBT-2000D5020001600
RBT-2200D5022001760

FeaturesBenefits
Outstanding voltage conditioning
  • Protects equipment against mains voltage fluctuations, sags and microcuts
  • Naturally compensates power factor without need for PFC equipment
  • Filters load harmonics and voltage harmonics from mains
  • Eliminates flicker
Total power failure protection
  • Sustainable continuous power supply
  • Ride-through mode covers 90% of mains failures without genset start
  • Flexible DRUPS solution when configured with standard genset
Robust rotary technology
  • Conventional electrical / mechanical machine
  • High reliability
  • Low cost maintenance
High effciency
  • Energy saving
  • Unrivaled low Total Cost of Ownership (TCO)
  • Green technology
High short-circuit power
  • Fast fault-clearing capacity ensuring protections selectivity
  • Suitable for high peak currents (motors and mechanical loads)
  • Suitable for high crest factors (non-linear loads)
Modular and resilient “Plug & Run”
  • Flexibility from day one
  • Scalability for future extension
  • High resilience thanks to full redundancy without single point of failure
  • Ideal for Tier III / Tier IV applications (Uptime Institute)
Easy interfacing
  • User-friendly digital display (HMI)
  • Basic interface via simple contacts
  • Powerful communication features :
    • SCADA / BMS interface via MODBUS RTU/TCP
    • Internet access
    • PC supervision
    • Remote monitoring, alarming and paging features
Low maintenance
  • Simple maintenance operations
  • Unaffected up-time: no need to stop UPS during maintenance
  • Automatic Lubrication System for maximum reliability and lowest TCO
