Panelboards

IEM panelboards are designed to meet the needs of any electrical distribution system. Lighting, Distribution, and Receptacle Panelboards are custom engineered products designed to meet specific customer needs. Standard panelboard configurations are also available.

PIE Panelboards
  • Voltage: Up to 600Vac, 250Vdc maximum
  • Ampacity: 100A to 600A
  • 65kA at 480V
  • UL listed
  • Single phase and three phase
  • Series ratings with upstream devices
  • Main breaker, main lugs, subfed breaker - optional
  • 10K thru 65K SCCR (AIC) – interrupting capacity
  • Vertically mounted main and sub-feed circuit breakers
  • Up to 84 circuits in one panel
  • Interiors available in plated copper or aluminum bus
  • An interior accepts bolt-on or plug-on branch circuit breakers
  • Complete line of UL listed interiors with 200% rated neutrals for non-linear loads
  • Surge Suppression Equipment/Optional integrated TVSS
  • Configured for sequence phase connections allowing complete flexible circuit arrangement (1-, 2- or 3-poles) to properly balance the electrical load on each phase.
  • Lock and door opening mechanism includes a positive slide catch and right- or left-hand installation.
  • Multi section boards – bolted together and bushed openings (horizontal and vertical)
  • Standard or door in door trims
  • ANSI 61 light gray standard finish, other colors available as option
  • Stainless steel and aluminum available

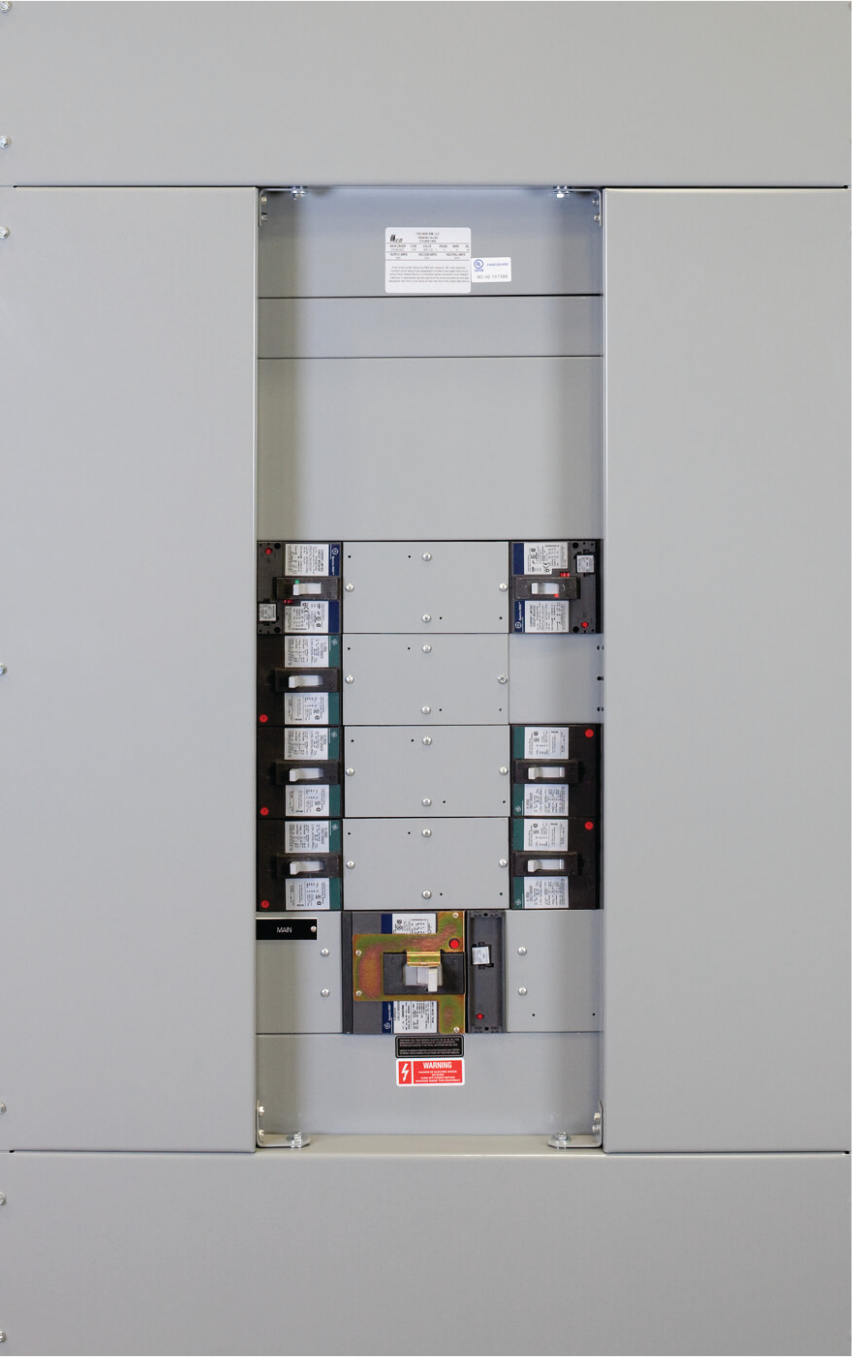

CDP Panelboards
  • Voltage: Up to 600Vac, 250Vdc maximum
  • Ampacity: 250A to 1200A
  • UL listed
  • Single phase and three-phase
  • 10K thru 200K SCCR (AIC) – Interrupting Capacity (100kA at 480V, 200kA at 240V)
  • Series ratings with upstream devices
  • Interiors available in plated copper or aluminum bus
  • Main breaker or main lugs
  • Fully rated or series rated
  • Selection includes most commercially available molded case circuit breakers from industry leading manufacturers
  • Standard or door in door trims
  • ANSI 61 light gray standard finish, other colors available as option
  • Stainless steel and aluminum available
IEM Difference

Fully rated bus is based on density ratings, not UL heat rise tests, resulting in more bus and lower operating temperatures.

All enclosures are designed for specific application with improved dimensional flexibility and finished using state of the art powder coating system providing an indoor finish that exceeds the 1500 hour salt spray testing requirement for outdoor equipment by over 3000 hours.

Component and metering selections are based on value engineering for the application and optimized to meet specifications.

Technical Specifications
  • IEM Switchgear meets seismic testing, circuit requirements as outlined by IEEE344 and ICC-ES-AC156.
